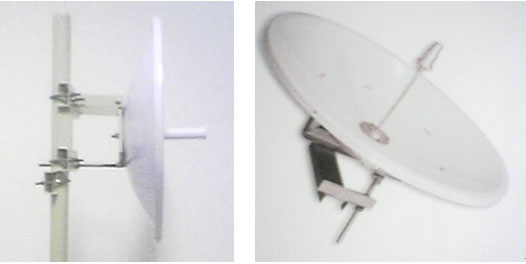

标准抛物面定向天线产品频率范围0.9GHz～18GHz；天线口径有0.5m、0.6m、0.8m、1.2m、1.5m等系列产品；反射面采用整体铝板模压而成、表面进行烤漆处理，耐腐蚀抗老化；结构合理安装方便。
标准抛物面定向天线技术参数
|
频 段
GHz |
天 线 型 号 |
口径
m |
增益
dBi |
半功率
角度
Degress |
前后比
dB |
驻波比
Max. |
正交极化
鉴别率
dB |
输出接口 |
| 1.00～1.35 |
QJPW06-10D |
0.6 |
14.9 |
28.0 |
22 |
1.5 |
27 |
N--50K |
| QJPW 08-10D |
0.8 |
17.4 |
21.0 |
25 |
1.5 |
27 |
| QJPW 12-10D |
1.2 |
20.9 |
14.0 |
28 |
1.5 |
27 |
| QJPW 15-10D |
1.5 |
22.8 |
11.2 |
29 |
1.5 |
27 |
| 1.35～1.55 |
QJPW 06-13D |
0.6 |
16.5 |
25.0 |
23 |
1.5 |
27 |
N--50K |
| QJPW 08-13D |
0.8 |
19.6 |
18.7 |
27 |
1.5 |
27 |
| QJPW 12-13D |
1.2 |
23.0 |
12.5 |
32 |
1.5 |
27 |
| QJPW 15-13D |
1.5 |
25.0 |
10.0 |
35 |
1.5 |
27 |
| 1.7～1.9 |
QJPW 06-17D |
0.6 |
18.8 |
19.4 |
25 |
1.5 |
27 |
N--50K |
| QJPW 08-17D |
0.8 |
21.3 |
14.5 |
29 |
1.5 |
27 |
| QJPW 12-17D |
1.2 |
24.8 |
9.7 |
33 |
1.5 |
27 |
| QJPW 15-17D |
1.5 |
26.8 |
7.8 |
36 |
1.5 |
27 |
| 2.3～2.5 |
QJPW 06-23D |
0.6 |
21.3 |
14.6 |
31 |
1.5 |
28 |
N--50K |
| QJPW 08-23D |
0.8 |
23.8 |
11.0 |
32 |
1.5 |
28 |
| QJPW 12-23D |
1.2 |
27.3 |
7.3 |
36 |
1.5 |
28 |
| QJPW 15-23D |
1.5 |
29.5 |
6.2 |
38 |
1.5 |
28 |
| 2.5～2.7 |
QJPW 06-25D |
0.6 |
21.8 |
13.5 |
28 |
1.5 |
28 |
N--50K |
| QJPW 08-25D |
0.8 |
24.3 |
10.1 |
30 |
1.5 |
28 |
| QJPW 12-25D |
1.2 |
27.7 |
6.7 |
35 |
1.5 |
28 |
| QJPW 15-25D |
1.5 |
32.1 |
5.4 |
40 |
1.5 |
28 |
| 3.35～3.6 |
QJPW 06-35D |
0.6 |
23.8 |
10.0 |
31 |
1.4 |
28 |
N--50K |
| QJPW 08-35D |
0.8 |
26.3 |
7.5 |
33 |
1.4 |
28 |
| QJPW 12-35D |
1.2 |
29.8 |
5.0 |
37 |
1.4 |
28 |
| QJPW 15-35D |
1.5 |
31.8 |
4.0 |
39 |
1.4 |
28 |
| 3.4～3.8 |
QJPW 06-34D |
0.6 |
24.6 |
9.7 |
32 |
1.4 |
28 |
N--50K |
| QJPW 08-34D |
0.8 |
27.1 |
7.3 |
34 |
1.4 |
28 |
| QJPW 12-34D |
1.2 |
30.6 |
4.9 |
37 |
1.4 |
28 |
| QJPW 15-34D |
1.5 |
32.5 |
3.9 |
39 |
1.4 |
28 |
| 3.8～4.2 |
QJPW 06-38D |
0.6 |
25.5 |
8.8 |
32 |
1.4 |
28 |
N--50K |
| QJPW 08-38D |
0.8 |
28.0 |
6.6 |
34 |
1.4 |
28 |
| QJPW 12-38D |
1.2 |
31.5 |
4.4 |
38 |
1.4 |
28 |
| QJPW 15-38D |
1.5 |
33.3 |
3.5 |
40 |
1.4 |
28 |
| 5.725～5.85 |
QJPW 06-58D |
0.6 |
28.5 |
6.0 |
40 |
1.3 |
30 |
N--50K |
| QJPW 08-58D |
0.8 |
31.1 |
4.6 |
42 |
1.3 |
30 |
| QJPW 12-58D |
1.2 |
34.5 |
3.0 |
46 |
1.3 |
30 |
| QJPW 15-58D |
1.5 |
36.4 |
2.4 |
48 |
1.3 |
30 |
标准抛物面定向天线技术参数
|
频 段
GHz |
天 线 型 号 |
口径
m |
增 益
dBi |
半功率
角度
Degress |
前后比
dB |
驻波比
Max. |
正交极化
鉴别率
dB |
输出
接口 |
5.925～6.425 |
QJPW 06-59D |
0.6 |
29.5 |
5.6 |
36 |
1.3 |
28 |
N--50K |
| QJPW 08-59D |
0.8 |
32.0 |
4.2 |
37 |
1.3 |
28 |
| QJPW 12-59D |
1.2 |
35.5 |
2.8 |
42 |
1.3 |
30 |
| QJPW 15-59D |
1.5 |
37.5 |
2.3 |
44 |
1.3 |
30 |
6.425～7.125 |
QJPW 06-64D |
0.6 |
30.3 |
5.2 |
37 |
1.3 |
28 |
N--50K/
BJ--84 |
| QJPW 08-64D |
0.8 |
32.8 |
3.9 |
38 |
1.3 |
28 |
| QJPW 12-64D |
1.2 |
36.3 |
2.6 |
43 |
1.3 |
30 |
| QJPW 15-64D |
1.5 |
38.3 |
2.1 |
45 |
1.3 |
30 |
7.125～7.725 |
QJPW 06-71D |
0.6 |
31.1 |
4.7 |
38 |
1.2 |
28 |
N--50K/
BJ--84 |
| QJPW 08-71D |
0.8 |
33.6 |
3.6 |
39 |
1.2 |
28 |
| QJPW 12-71D |
1.2 |
37.1 |
2.4 |
44 |
1.2 |
30 |
| QJPW 15-71D |
1.5 |
39.1 |
1.9 |
46 |
1.2 |
30 |
7.725～8.275 |
QJPW 06-77D |
0.6 |
31.8 |
4.4 |
38 |
1.2 |
28 |
N--50K/
BJ--84 |
| QJPW 08-77D |
0.8 |
34.3 |
3.0 |
40 |
1.2 |
28 |
| QJPW 12-77D |
1.2 |
37.8 |
2.2 |
44 |
1.2 |
30 |
| QJPW 15-77D |
1.5 |
39.7 |
1.8 |
46 |
1.2 |
30 |
8.2～8.5 |
QJPW 06-82D |
0.6 |
32.2 |
4.2 |
38 |
1.2 |
28 |
N--50K/
BJ--84 |
| QJPW 08-82D |
0.8 |
34.6 |
2.9 |
40 |
1.2 |
28 |
| QJPW 12-82D |
1.2 |
38.2 |
2.1 |
44 |
1.2 |
30 |
| QJPW 15-82D |
1.5 |
40.1 |
1.7 |
47 |
1.2 |
30 |
8.5～8.75 |
QJPW 06-85D |
0.6 |
32.5 |
4.1 |
39 |
1.2 |
28 |
N--50K/
BJ--84 |
| QJPW 08-85D |
0.8 |
34.9 |
2.7 |
41 |
1.2 |
28 |
| QJPW 12-85D |
1.2 |
38.5 |
2.0 |
45 |
1.2 |
30 |
| QJPW 15-85D |
1.5 |
40.4 |
1.6 |
48 |
1.2 |
30 |
10.7～11.2 |
QJPW 06-107D |
0.6 |
34.5 |
3.4 |
41 |
1.15 |
30 |
BJ--120 |
| QJPW 08-107D |
0.8 |
37.0 |
2.4 |
42 |
1.15 |
30 |
| QJPW 12-107D |
1.2 |
40.0 |
1.7 |
47 |
1.15 |
30 |
| QJPW 15-107D |
1.5 |
42.4 |
1.4 |
49 |
1.15 |
30 |
11.2～11.7 |
QJPW 06-112D |
0.6 |
34.5 |
3.1 |
42 |
1.15 |
30 |
BJ--120 |
| QJPW 08-112D |
0.8 |
37.4 |
2.3 |
44 |
1.15 |
30 |
| QJPW 12-112D |
1.2 |
40.4 |
1.5 |
48 |
1.15 |
30 |
| QJPW 15-112D |
1.5 |
42.5 |
1.3 |
50 |
1.15 |
30 |
11.7～12.5 |
QJPW 06-117D |
0.6 |
34.6 |
2.9 |
42 |
1.15 |
30 |
BJ--120 |
| QJPW 08-117D |
0.8 |
37.5 |
2.0 |
45 |
1.15 |
30 |
| QJPW 12-117D |
1.2 |
40.6 |
1.5 |
48 |
1.15 |
30 |
| QJPW 15-117D |
1.5 |
42.6 |
1.2 |
50 |
1.15 |
30 |
|
